Sale!

UNI-T UT204 Clamp Meter NCV,400-600A With Temperature Test Auto,UT204 plus True RMS High Precision Multimeter.Send a Test Line.

$165

512 in stock

SKU: 4000630320127 Category:

Description

  • Brand Name: UNI-T
  • Certification: CE
  • DIY Supplies: ELECTRICAL
  • Origin: CN(Origin)
  • Measuring Capacitance Range: 10Hz~10MHz
  • Model Number: UT204
  • Dimensions: 215mm x 63mm x 36mm
  • Measuring Voltage Range: 600V
  • Operating Temperature: -40℃~1000℃
  • Measuring Resistance Range: 60MΩ
  • Weight: 235g
  • Measuring Current Range: 600A
  • Display Type: Digital Only
  • Display count: 6000

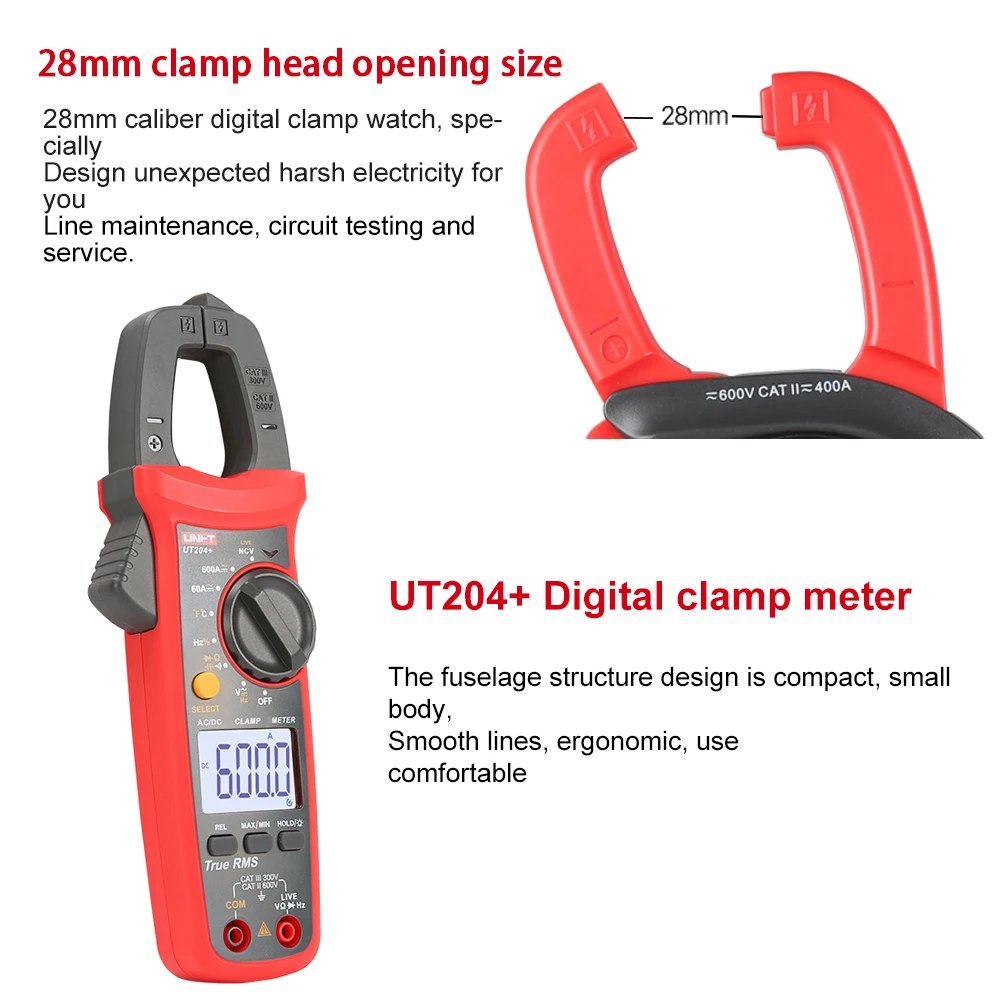

  • Jaw opening: 28mm
  • Product color: Red and grey
  • Display: 37mm x 25mm
UT204+ 400-600A digital clamp meter

1.Industrial electricity
2.Residential electricity
3.Air conditioning
4.Automobile



Specifications

Range

UT204+

AC current (A)

400A

600A

±(2.5%+5)

AC current frequency (Hz)

50Hz~100Hz

DC current (A)

400A

600A

±(2.5%+5)

AC voltage (V)

600V

±(0.8%+5)

AC voltage frequency(Hz)

10Hz~10kHz

10Hz~60kHz

±(0.5%+2)

DC voltage (A)

600V

±(0.5%+2)

Resistance (Ω)

40MΩ

60MΩ

±(0.8%+2)

Capacitance (F)

4mF

40mF

60mF

±(4%+5)

Temperature (℃)

-40℃~1000℃

±(1.5%+5)

Frequency (Hz)

10Hz~10MHz

±(0.1%+4)

Features

Display count

6000

Auto range

Jaw opening

28mm

True RMS

NCV

Live wire test

Continuity test

Diode

MAX/MIN

Relative mode

Zero mode

Data hold

Low battery indication

Auto power off

General Characterisitics

Power

1.5V battery (R03) x 2

Display

37mm x 25mm

Product color

Red and grey

Product net weight

235g

Product size

215mm x 63mm x 36mm

Standard accessories

No Batteries, test leads, Themocouple

Standard individual packing

Gift box, Carring bag, English manual

Standard quantity per carton

40pcs

Standard carton measurement

485mm x 295mm x 385mm

Standard carton gross weight

17.3kg
