Oil Pipe Low Pressure 0-10V Differential Pressure Transducer Digital Output


Choose an option
Choose an option
SKU: 1005001322181187 Category:


  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Max Measuring Range: 59 Bar & Under
  • Model Number: HDP702
  • Measuring medium: Oil,water,gas etc
  • Measuring range: 0…10kpa…100kpa-6Mpa
  • Output signal: 4-20mA,1-5v,0-10v,0-10V etc
  • Power supply: 5-30VDC
  • Shell Protection: IP65
  • Way of working: Differential pressure
  • Working temperature: -40Deg.C-80Deg.C
  • Overload pressure: 200%F.S.
  • Long-term stability: ±0.03%F.S/Deg.C
  • Structural materials: Full stainless steel
  • Compensation temperature: -10Deg.C-70Deg,C
  • Accuracy: 0.5% F.S
  • Electrical connections: Hessmann
  • Process connection: M20*1.5
  • Warranty period: 12 months
  • Product name: differential pressure transmitter

oil pipe low pressure 0-10v differential pressure transducer digital output

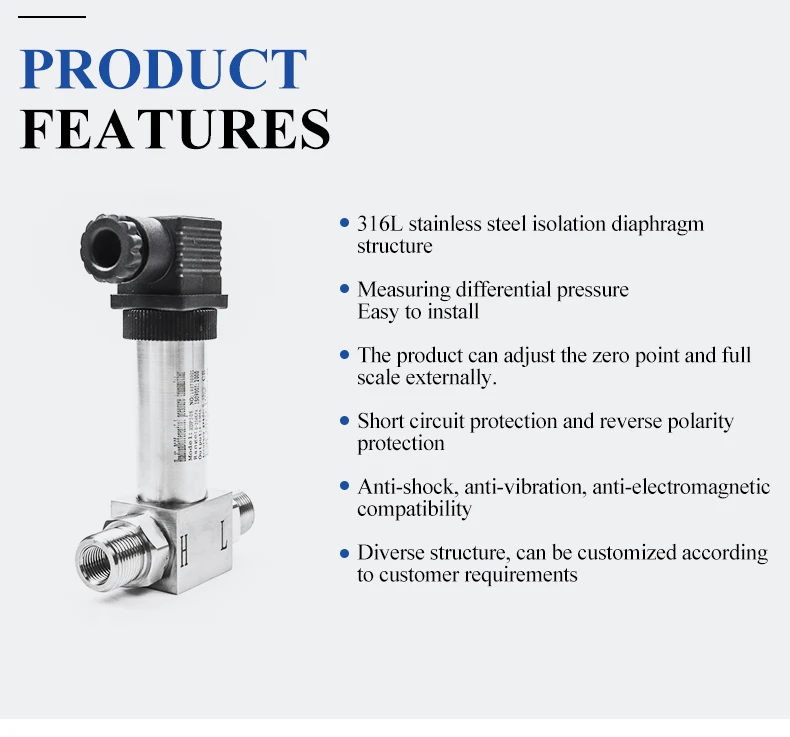

The HDP702 series integrated differential pressure transmitter is assembled with an OEM silicon piezoresistive differential pressure oil-filled core. The outer casing is made of stainless steel and has strong corrosion resistance. The two pressure ports are threaded and can be mounted directly on the measuring pipe or connected via a pressure pipe.

Product details

Smart differential pressure transmitter
mail to: lee(@)
whatsApp/skype/wechat: +86 152 1569 7991

Selection Table

Wiring Diagram And Size

Company Information

Huadian specializes in High-tech R&D, focuses on self developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.

Our Service

1.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.

2.We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.

3.OEM, Accept lower quantity trial order

4.Fast delivery. 24 hours With Discount Courier, Air shipment

5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.

All products are in stock (except for special customization).

6.We can support you 24Hours online service via Alibaba, email, skype, what’sapp, facebook etc.

7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!
